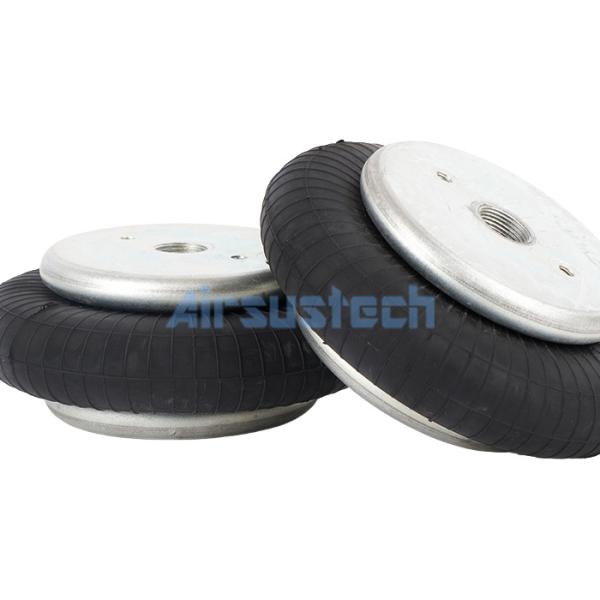

Weforma WBE 300-E1 G3/4 Pneumatic Rubber Air Spring for Pulp and Paper Industry
Specifications: Weforma VS. AIRSUSTECH
| Model Number | Min. Height | Max. Height | Center Distance | Cover Plate Width | Port Szie | Threaded Holes | Max. Diameter |
| WBE 300-E1 | 50 mm | 135 mm | 70 mm | 141 mm | G3/4 | M8 | 215 mm |
| 1B1209 | 50 mm | 115 mm | 70 mm | 135 mm | G3/4 | M8 | 215 mm |
OEM Cross References with G3/4 Air Hole
Weforma Number: WBE 300-E1, WBE 300E1, WBE 300 E1
Firestone Number: W01-M58-6165, W01M586165, W01 M58 6165
Contitech Number: FS 120-9, FS 1209, FS 120 9
Dunlop Number: 8''x1 S08101, 8'x1 S08101, 8x1 S08101
Bosch Number: 822419003
Festo Number: EB-215-80, EB21580, EB 215 80
Norgren Number: PM/31081(8x1), PM31081(8x1), PM 31081(8x1)
Airtech Number: 140293
Airtech Number: 111003/1B-190FB
Megatech Number: 1S120-9 3/4 M8
Other Part Numbers with G1/4 Air Inlet
Firestone Number: W01-M58-6166, W01M586166, W01 M58 6166
Dunlop(FR) Number: 8''x1 S08100, 8'x1 S08100, 8x1 S08100
Bosch Number: 822419008
Weforma Number: WBE 300-E2, WBE 300E2, WBE 300 E2
Technical Data
Min. pressure: 0 bar
Return force to min. height: ≤ 200N
Overall weight with clamped plates: 2.0 kg
| Vibration isolation - dynamic characteristics values |
| Pressure P [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V[l] |
| Force (Load) [kN] | 3.9 | 5.3 | 6.8 | 8.3 | 9.6 | 10.9 | 1.8 |
| Spring Rate [N/cm] | 1315 | 1620 | 1925 | 2230 | 2535 | 2840 |
| Natural Frequency [Hz] | 2.9 | 2.8 | 2.7 | 2.6 | 2.6 | 2.6 |
| Pneumatic application - static characteristic values |
| Pressure p | [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol.[l] |
| Height H [mm] | 120 | 3.1 | 4.3 | 5.6 | 6.9 | 8.0 | 9.2 | 1.9 |
| 110 | 3.9 | 5.3 | 6.8 | 8.3 | 9.6 | 10.9 | 1.8 |
| 100 | 4.5 | 6.1 | 7.9 | 9.7 | 11.0 | 12.4 | 1.7 |
| 90 | 5.0 | 6.8 | 8.9 | 10.8 | 12.2 | 13.8 | 1.5 |
| 80 | 5.5 | 7.4 | 9.7 | 11.6 | 13.3 | 15.0 | 1.3 |
| 70 | 5.9 | 7.9 | 10.3 | 12.3 | 14.2 | 16.0 | 1.1 |
| 60 | 6.3 | 8.2 | 10.7 | 13.0 | 15.0 | 17.0 | 0.9 |
